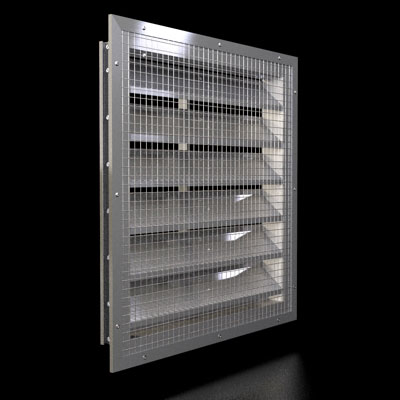

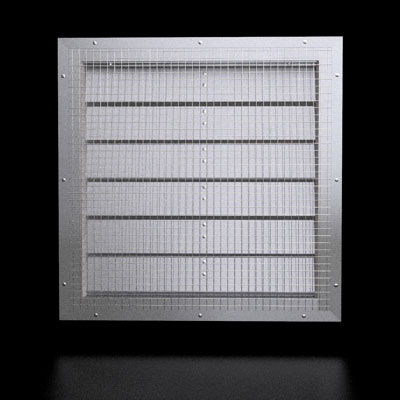

245A - 2 Inch Adjustable Louver

Airflow characteristics

  • 47.0% free area for 48"x48" size with no screen
  • 39.0% free area for 48"x48" size with 1/4 inch screen
  • Maximum recommended intake velocity2 614 FPM

Free area table3 - square feet

Width - inches
12 18 24 30 36 42 48 54 60 72
Height - inches 12 0.34 0.53 0.71 0.90 1.09 1.28 1.47 1.66 1.85 2.22
18 0.61 0.95 1.30 1.64 1.98 2.32 2.66 3.01 3.35 4.03
24 0.80 1.25 1.70 2.14 2.59 3.04 3.48 3.93 4.38 5.27
30 1.08 1.68 2.28 2.88 3.48 4.08 4.68 5.28 5.88 7.08
36 1.26 1.97 2.68 3.38 4.09 4.79 5.50 6.21 6.91 8.32
42 1.45 2.26 3.08 3.89 4.70 5.51 6.32 7.13 7.94 9.56
48 1.73 2.69 3.66 4.62 5.59 6.55 7.52 8.48 9.44 11.37
54 2.00 3.12 4.24 5.36 6.47 7.59 8.71 9.83 10.95 13.18
60 2.19 3.41 4.64 5.86 7.08 8.31 9.53 10.75 11.98 14.42
72 2.66 4.14 5.62 7.10 8.58 10.06 11.55 13.03 14.51 17.47

Product Literature

245A is a 2 inch deep adjustable (operable) louver with straight blades. Sideseals on the jambs minimize air and water penetration. It is ideal for ventilation in panel-wall buildings and doors requiring modulated airflow. For deeper walls, see 445A - 4 inch adjustable louver. For non-modulated airflow, see 245 - 2 inch fixed-blade louver.

Dimensions and weight

Depth:
2 inches (51 mm)
Width:
Maximum 36 inches (914 mm) per panel; Larger vents made of multiple panels
Height:
Maximum 48 inches (1219 mm) per panel; Larger vents made of multiple panels
Weight:
Approximately 2.5 lbs/sqft (12.0 kg/m2)

Width and height undersized by 1/4 inch to fit rough openings (unless otherwise specified).

Features and options

Construction

  • 0.070 inch (1.78 mm) thick aluminum extrusions
  • Low Leakage (LL) nylon sideseals between jambs and blade edges
  • 1/2" aluminum flatbar linkage; Aluminum brackets
  • Assembled with cadmium plated screws and rivets
  • Screen installed on back face

Frame

  • Flange frame for standard building installation
  • Channel frame for duct installation (optional)
  • Reverse flange frame for surface mount1 or interior installation (optional)

Screen

  • 1/4" welded square mesh, 25ga galvanized steel; Fastened on back face
  • 1/2" welded square mesh, 21ga galvanized steel (optional)
  • 1/8" woven square mesh, 27ga galvanized steel (optional)
  • 1/16" nylon insect screen (optional)

Adjustment & locking device

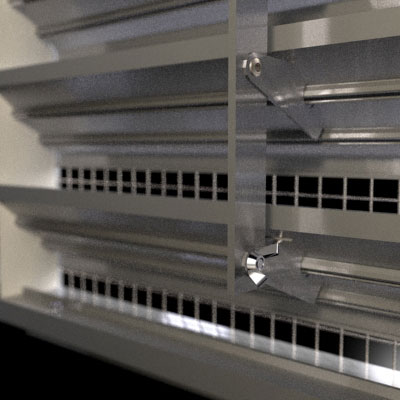

  • Manual adjustment with wingnut lock
  • Spring and chain for inaccessible installation (optional)

Linkage and control

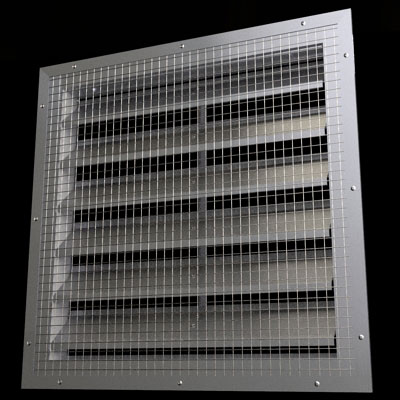

  • Back-face linkage and control for standard building installation

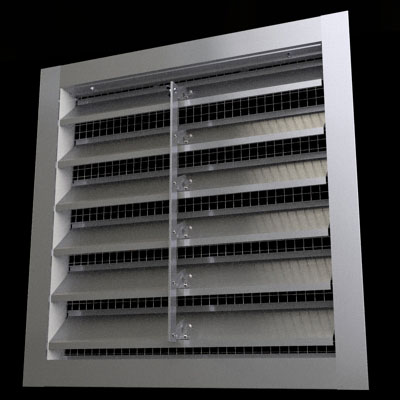

  • Front-face linkage and control for exterior operation (optional)
  1. Sleeve or hood (not supplied) is recommended for surface mount.
  2. First point of water penetration, based on tests conducted in our factory on 36"x36" unit.
  3. Free area computed using AMCA guidelines. Screen reduces free area to 83% of shown figures.
